CHANCS 775 DIY Table Saw - Mini Electric Circular Saw with 24V DC Motor, 12000 RPM, Cordless Drill Spindle Motor for Woodworking | Perfect for Home DIY Projects, Wood Cutting & Crafting
CHANCS 775 DIY Table Saw - Mini Electric Circular Saw with 24V DC Motor, 12000 RPM, Cordless Drill Spindle Motor for Woodworking | Perfect for Home DIY Projects, Wood Cutting & Crafting

CHANCS 775 DIY Table Saw - Mini Electric Circular Saw with 24V DC Motor, 12000 RPM, Cordless Drill Spindle Motor for Woodworking | Perfect for Home DIY Projects, Wood Cutting & Crafting

$42.67 $56.9 -25% OFF

Free shipping on all orders over $50

7-15 days international

12 people viewing this product right now!

30-day free returns

Secure checkout

18798836

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

Description

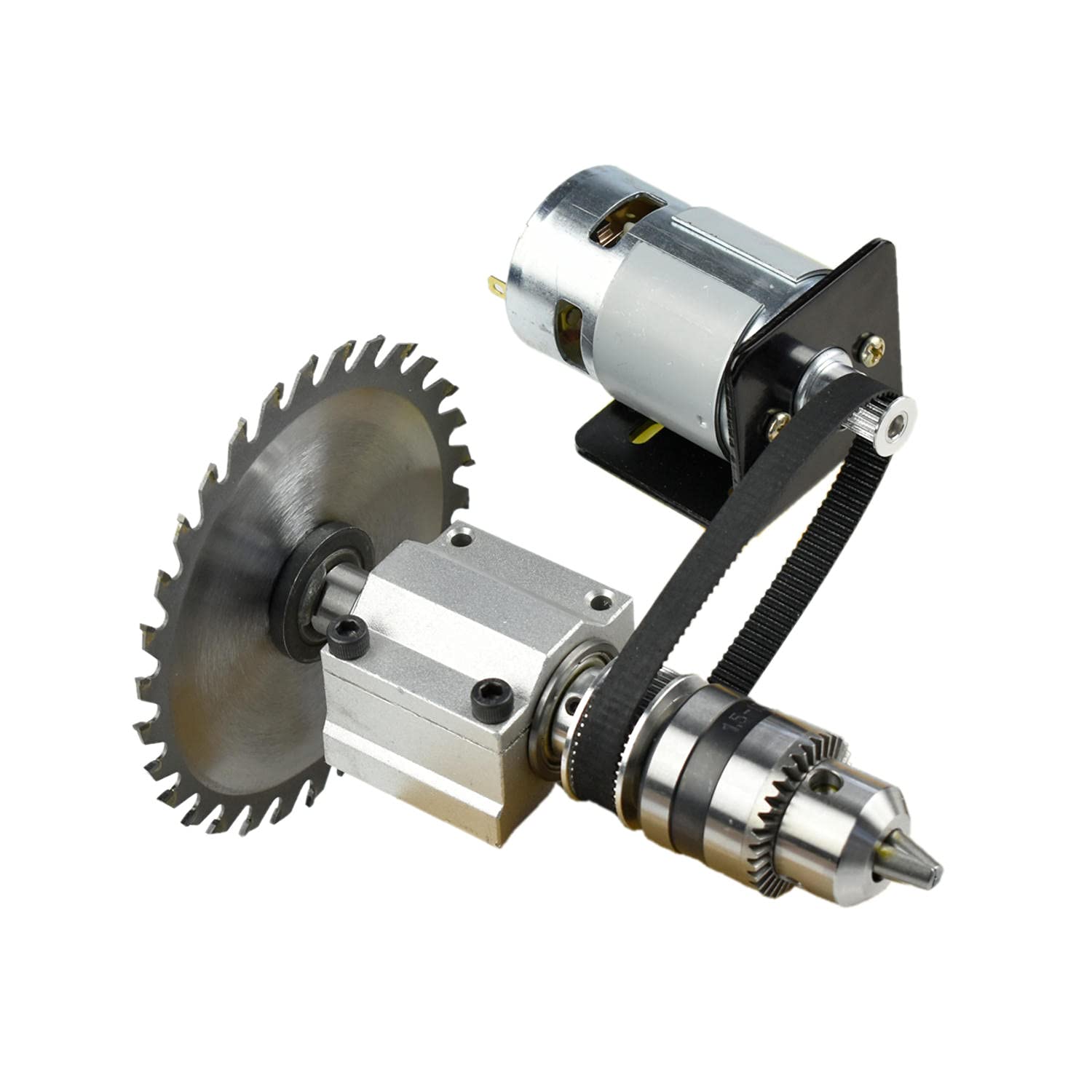

Attention: The set can use adjustable speed power supply, or switching power supply. Power supply current can not be less than 10A, the recommended use of current greater than 15A power supply. When installing, please tighten the saw blade and screws so that the saw blade will not fly out and hurt people when the motor starts. Read more Specifications of motor: Rated Voltage: DC 24V, Speed: 12000RPM; Starting current: 8A; Power: 280W; Motor Body Diameter: 42mm; Motor Body Length: 66.5mm; Shaft Length: 16mm; Shaft Diameter: 5mm; Size of Bracket: Length: 50mm; Width: 52mm; Height: 53mm; Mounting hole diameter: 4mm; Thickness of bracket: 3mm; Slider Size: Total length: 159mm(6.26"); Mounting holes for M5 screws; M10 bush is suitable for saw blade with inner diameter 16mm(0.63"), outer diameter 110mm(4.33"), common with angle grinder. B12 drill chuck clamping range is 1.5-10mm(0.06"-0.39"). Belt Pulley Size: Large pulley: 48 teeth, inner diameter 12 mm(0.47"); Small pulley: 16 teeth, inner diameter 5 mm(0.2"); Timing belt circumference: 240mm(9.45"). Read more Package Contain: 1 x Slider 1 x Motor 1 x Bracket 4 x Wrenches 2 x Wiring Terminals 1x Saw Blade 1 x Timing Belt 1 x Drill Chuck Handle 1 x Belt Pulley Read more Wiring Method Switching Power Supply Speed Controller DC 9-60V 775 Gear Motor Kit Electric Drill 895 Gear Motor Kit Electric Saw 775 Gear Motor Kit Sawing Machine Size 110*200*50(mm) 52*36*92(mm) 66.5*42(mm) 72*50(mm) 66.5*42(mm) Voltage Input 110-220V Input 9-60V DC 12V-24V DC 12V-24V DC 12V-24V Speed 10000-20000RPM 6000-12000RPM 10000-20000RPM Torque 1-2Kgf.cm 4-5Kgf.cm 1-2Kgf.cm

Features

    *Attention: 1.The set can use adjustable speed power supply, or switching power supply. 2.Always disconnect the power when wiring. 3.When installing, please tighten the saw blade and screws so that the saw blade will not fly out and hurt people when the motor starts.

    Application: Hand tools,garden tools, power tools,shredder, sprayer, small cutting machine, small table saw for cutting/polishing.

    *Specifications of motor: Rated Voltage: DC 24V, Speed: 12000RPM; Starting current: 8A; Power: 280W; Motor Body Diameter: 42mm; Motor Body Length: 66.5mm; Shaft Length: 16mm; Shaft Diameter: 5mm;

    *Slider Size: Total length: 159mm(6.26"); Mounting holes for M5 screws; M10 bush is suitable for saw blade with inner diameter 16mm(0.63"), outer diameter 110mm(4.33"), common with angle grinder. B12 drill chuck clamping range is 1.5-10mm(0.06"-0.39").

    *Belt Pulley Size: Large pulley: 48 teeth, inner diameter 12 mm(0.47"); Small pulley: 16 teeth, inner diameter 5 mm(0.2"); Timing belt circumference: 240mm(9.45").

Reviews

******
- Verified Buyer
I initially gave this a one star, but I thought my lab power supply would have enough current for the motor. It did not. I thought it was a 5 Amp supply, but now I think it is only a 3 Amp supply which is why it would not start up until I manually turned the shaft. So, I found a 7 Amp and a 4 Amp power adapter and it worked just fine after that. If you buy this, make sure you have at least a 4 Amp supply.This motor and saw is working great with12v, Not using to cut wood though. The first one received had a broken magnet but it was quickly replaced, even before returning the bad one.Works okGreat deal, spins well, can just barely fit a 3/8” arbor cutoff disc on it for a homemade arrow cutting saw.Well first off the threads do not match. Ones a finer thread than the other so it is worthless right off the start.Item was exactly what I ordered and wasn't damaged from shipping.table sawAmazingCoupling does not fit over motor shaftNon ho mai superato il 40% dei giri e ha tagliato perfettamente listelli di legno con precisione. Ovvio, dovete assemblare il kit e montarlo su un supporto di legno. Quindi posizionare il tutto all'interno di una tavola rettangolare idonea a fare un piccolo banco sega e quindi creare la guida parallela, traversa a 90° e la guida a 45°. Dopo di che potete tagliare battiscopa e listelli non troppo spessi. CONTENTOOttimo prodotto ma necessità di potenziometro obbligatoriamente altrimenti il motore va’a singhiozzo….l’ho provato sia a a 12v che 24v e si comporta egregiamenteIch bin zufriedenleiter nicht weil dassägeplatt eiert kann die säge nicht mehr nutzen
