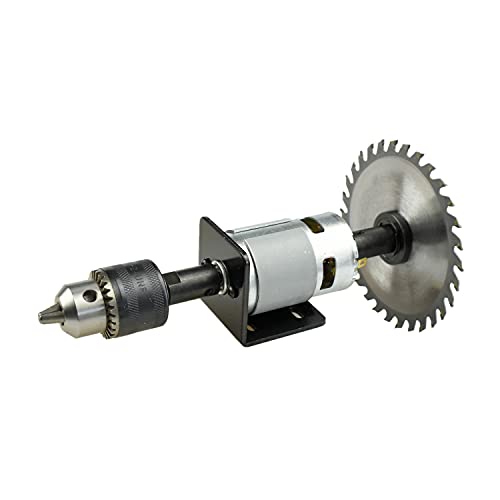

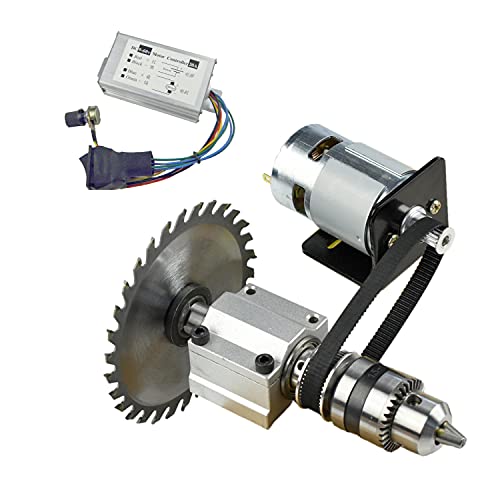

CHANCS 775 DIY Table Saw - Mini Electric Circular Saw with 24V DC Motor, 12000 RPM, Cordless Drill Spindle for Woodworking | Perfect for Home DIY Projects, Wood Cutting, and Crafting
Free shipping on all orders over $50
7-15 days international
28 people viewing this product right now!
30-day free returns
Secure checkout
43442475
Description

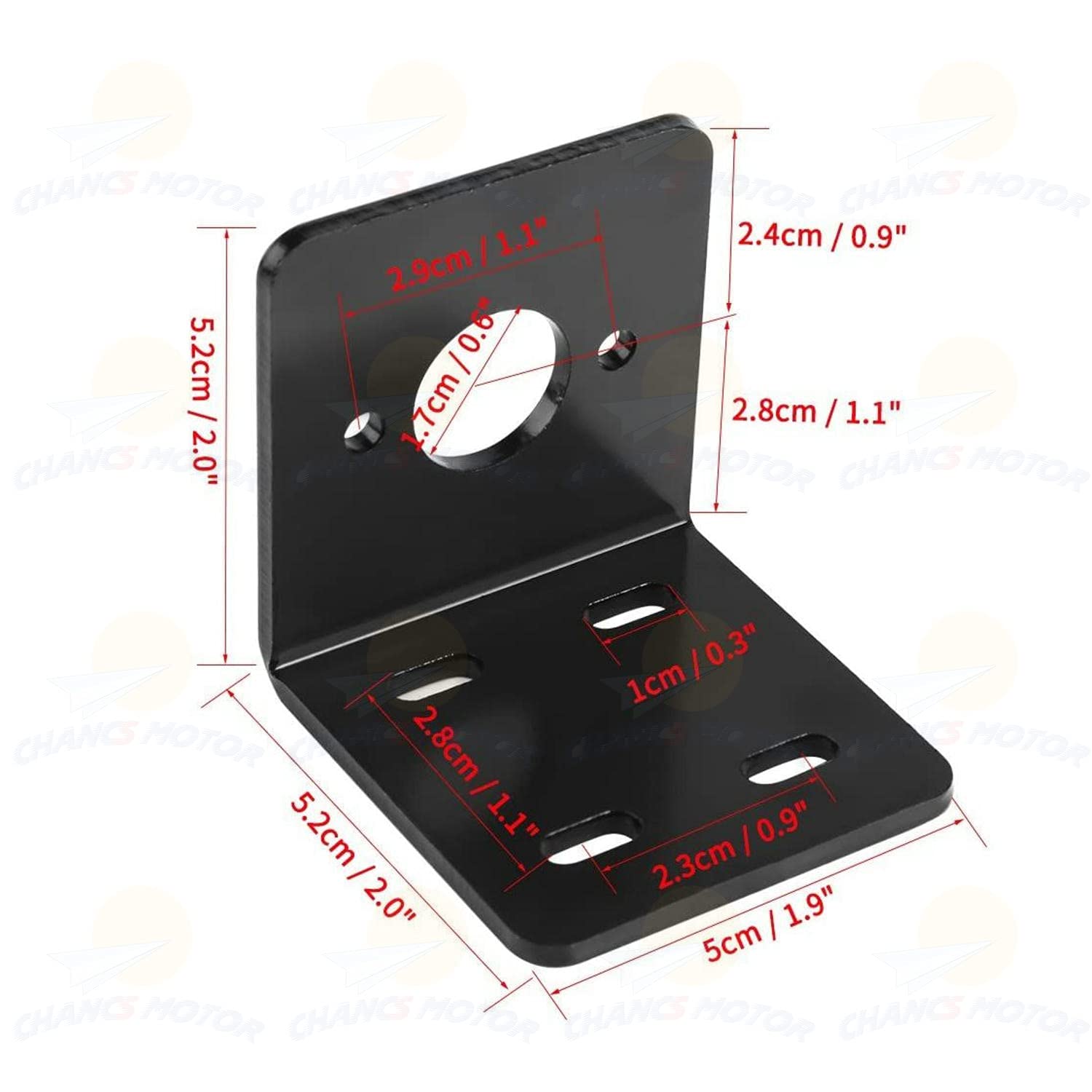

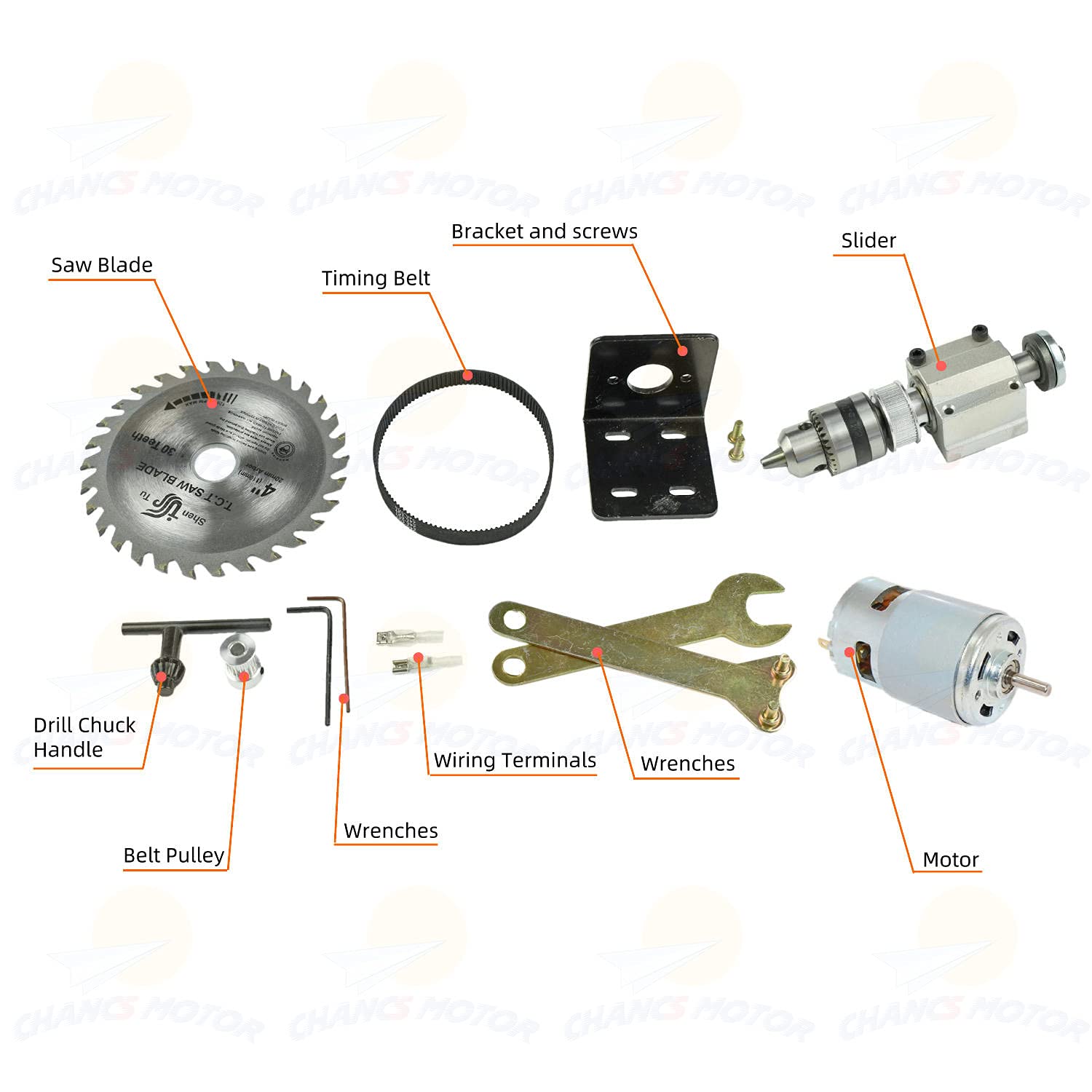

Attention: The set can use adjustable speed power supply, or switching power supply.Power supply current can not be less than 10A, the recommended use of current greater than 15A power supply.When installing, please tighten the saw blade and screws so that the saw blade will not fly out and hurt people when the motor starts. Specifications of motor: Rated Voltage: DC 24V, Speed: 12000RPM；Starting current: 8A；Power: 280W；Motor Body Diameter: 42mm；Motor Body Length: 66.5mm；Shaft Length: 16mm；Shaft Diameter: 5mm； Size of Bracket: Length: 50mm;Width: 52mm;Height: 53mm;Mounting hole diameter: 4mm;Thickness of bracket: 3mm; Slider Size： Total length: 159mm(6.26")；Mounting holes for M5 screws；M10 bush is suitable for saw blade with inner diameter 16mm（0.63"）, outer diameter 110mm(4.33"), common with angle grinder.B12 drill chuck clamping range is 1.5-10mm(0.06"-0.39"). Belt Pulley Size: Large pulley: 48 teeth, inner diameter 12 mm(0.47");Small pulley: 16 teeth, inner diameter 5 mm(0.2");Timing belt circumference: 240mm(9.45"). Package Contain: 1 x Slider 1 x Motor 1 x Bracket 4 x Wrenches2 x Wiring Terminals1x Saw Blade1 x Timing Belt1 x Drill Chuck Handle1 x Belt Pulley Wiring Method Switching Power Supply Speed Controller DC 9-60V 775 Gear Motor Kit Electric Drill 895 Gear Motor Kit Electric Saw 775 Gear Motor Kit Sawing Machine Add to Cart Buying Options Add to Cart Add to Cart Add to Cart Customer Reviews — — 4.0 out of 5 stars 165 4.2 out of 5 stars 7 4.3 out of 5 stars 222 Price $34.19$34.19 — no data $29.99$29.99 $38.99$38.99 $30.99$30.99 Size 110*200*50(mm) 52*36*92(mm) 66.5*42(mm) 72*50(mm) 66.5*42(mm) Voltage Input 110-220V Input 9-60V DC 12V-24V DC 12V-24V DC 12V-24V Speed no data no data 10000-20000RPM 6000-12000RPM 10000-20000RPM Torque no data no data 1-2Kgf.cm 4-5Kgf.cm 1-2Kgf.cm
Features
*Attention 1.The set can use adjustable speed power supply, or switching power supply. 2.Always disconnect the power when wiring. 3.When installing, please tighten the saw blade and screws so that the saw blade will not fly out and hurt people when the motor starts.
*Application Hand tools,garden tools, power tools,shredder, sprayer, small cutting machine, small table saw for cutting/polishing.

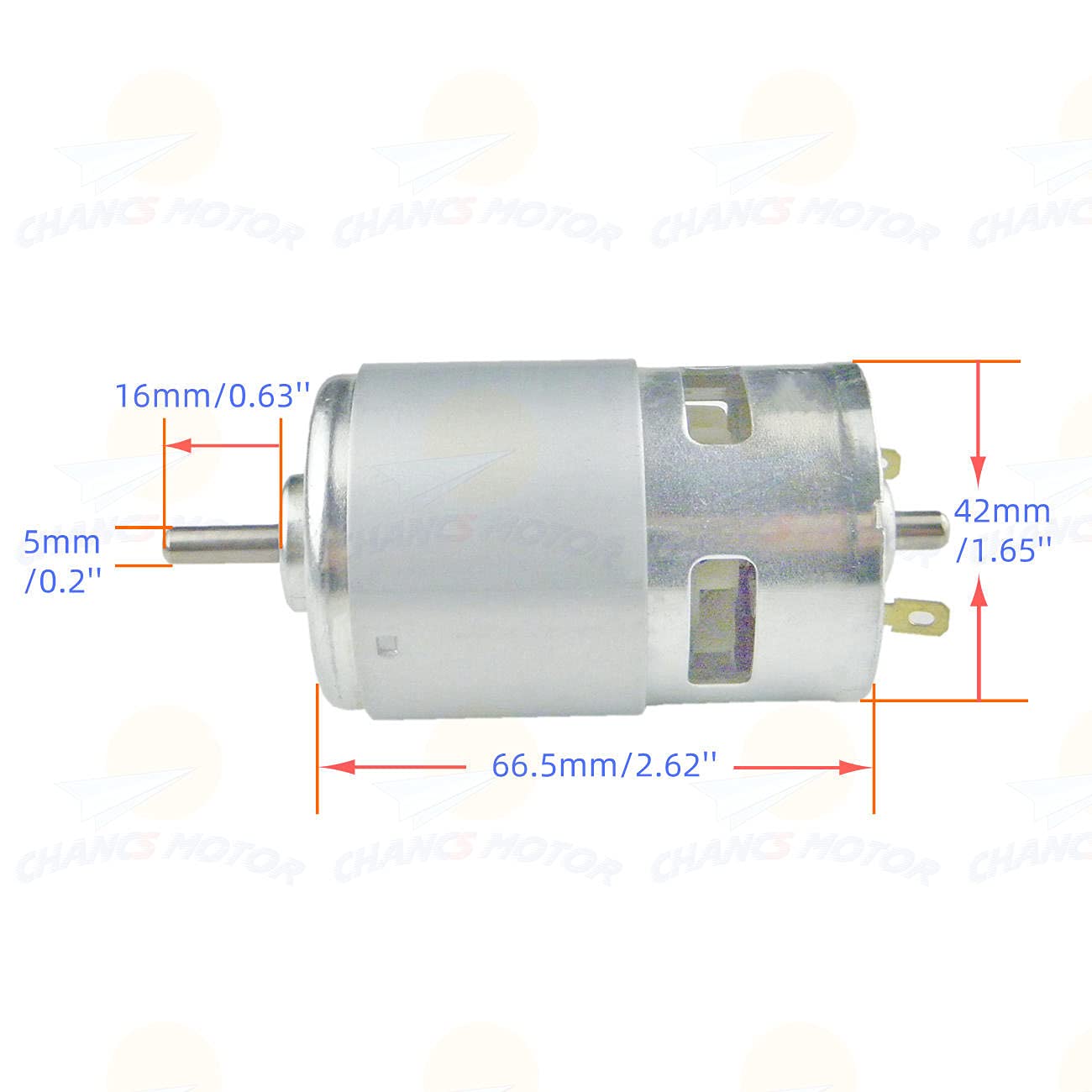

*Specifications of motor Rated Voltage DC 24V, Speed 12000RPM； Starting current 8A； Power 280W； Motor Body Diameter 42mm； Motor Body Length 66.5mm； Shaft Length 16mm； Shaft Diameter 5mm；

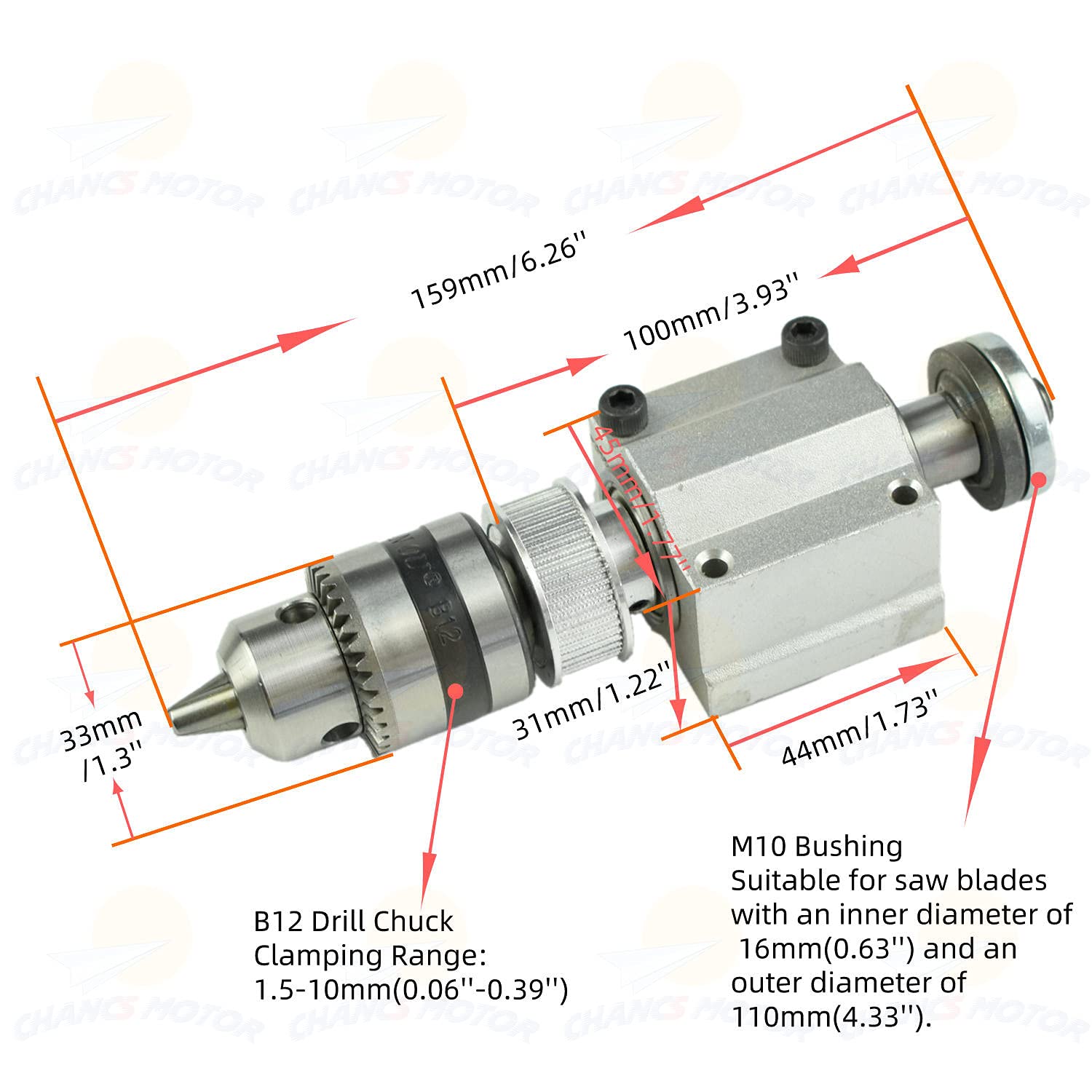

*Slider Size： Total length 159mm(6.26")； Mounting holes for M5 screws； M10 bush is suitable for saw blade with inner diameter 16mm（0.63"）, outer diameter 110mm(4.33"), common with angle grinder. B12 drill chuck clamping range is 1.5-10mm(0.06"-0.39").

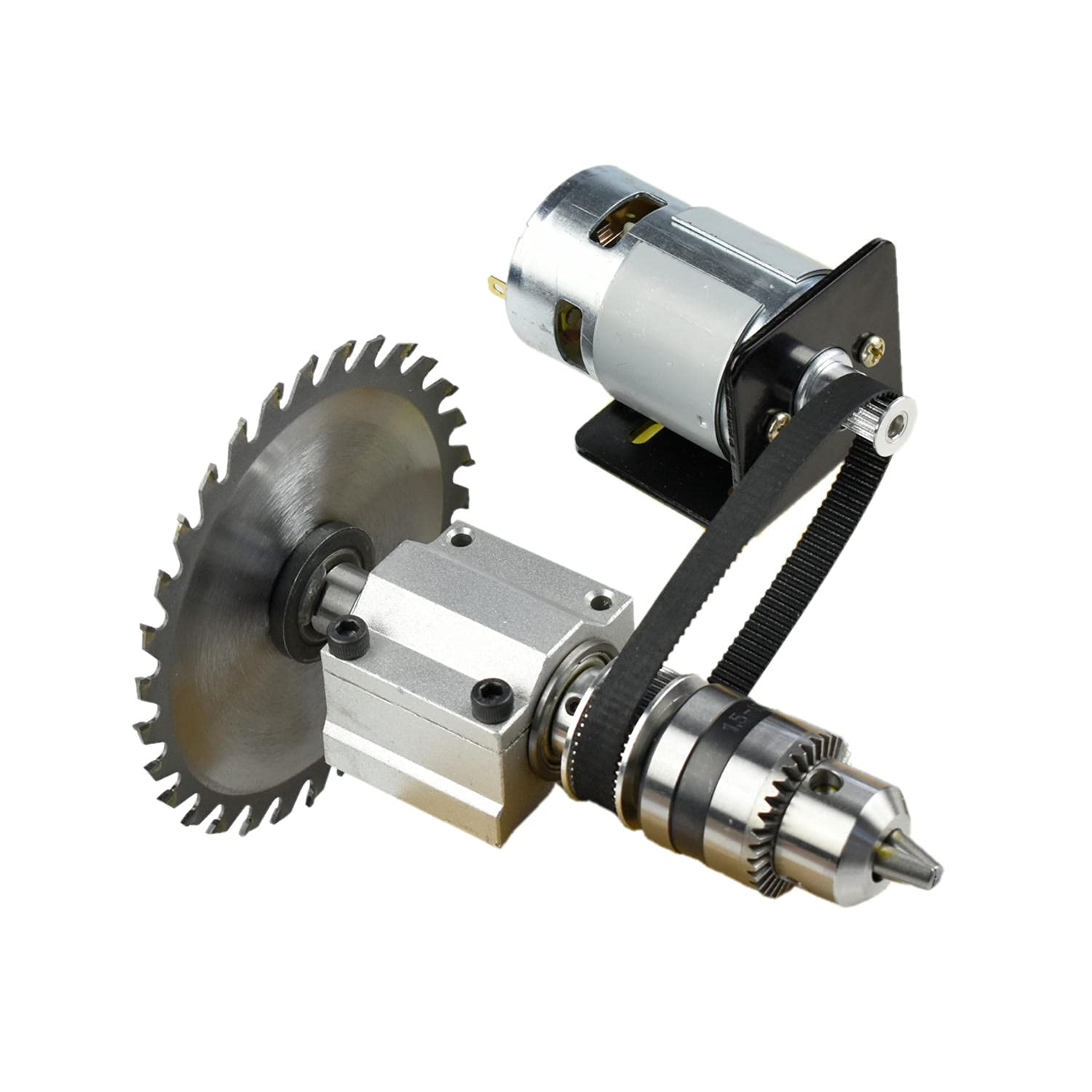

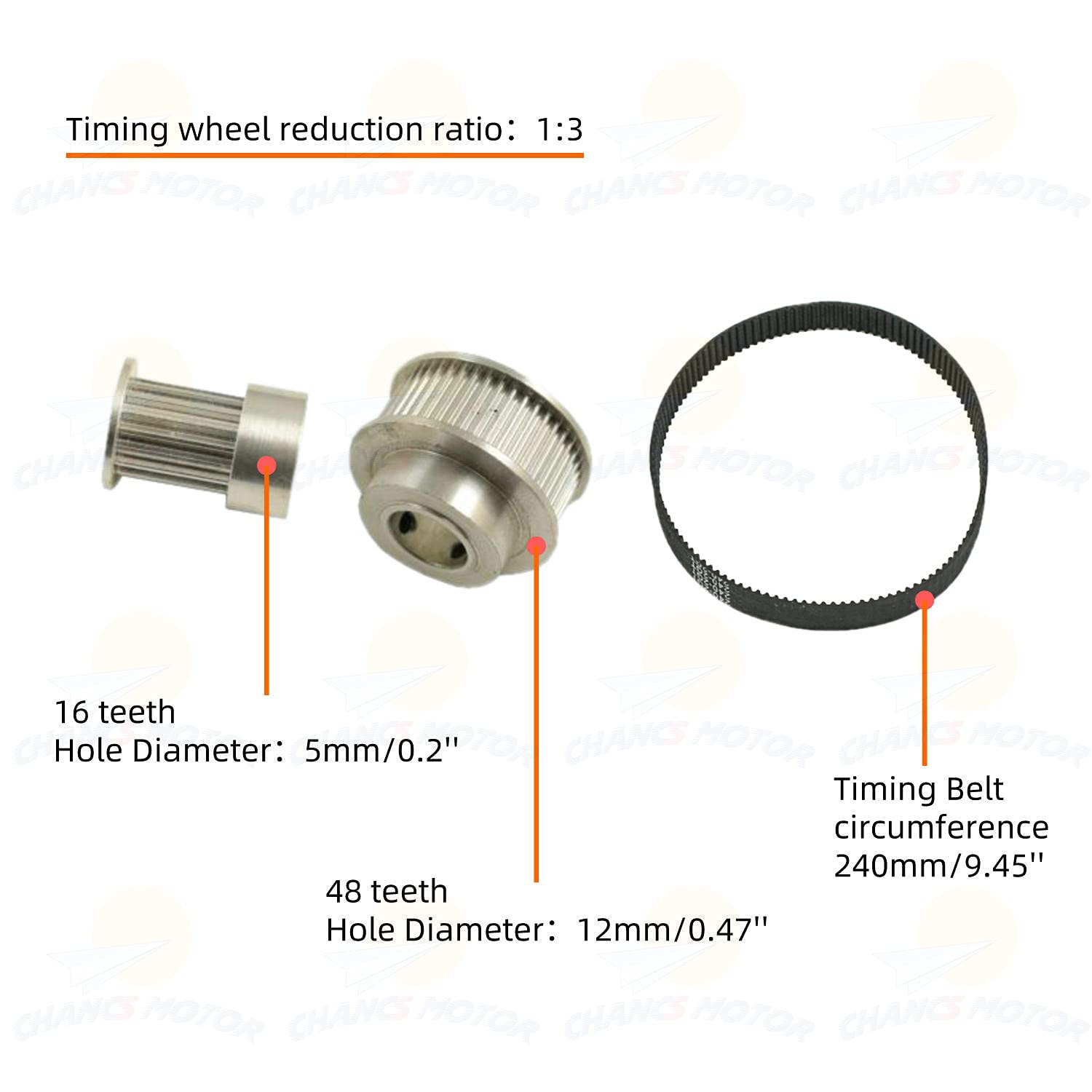

*Belt Pulley Size Large pulley 48 teeth, inner diameter 12 mm(0.47"); Small pulley 16 teeth, inner diameter 5 mm(0.2"); Timing belt circumference 240mm(9.45").
